Phil Jones Kombos
PJ COMPACT PLUS BG-450
Powerful Small Combo
The Compact Plus BG-450 is the pinnacle of PJB’s line of small and light weight powerful compact bass combos.It is the same size as PJB’s C-4 speaker enclosure with a power amplifier that will reach up to 500 Watts with four internal 5” drivers.
The BG-450 contains the latest proprietary PJB chrome dome drivers which are the most efficient five-inch speakers ever engineered by PJB. The result is a perfect pairing of power and driver efficiency that makes it the best sounding 4×5 combo ever made by PJB and, remarkably, with less weight. It has an incredible punchy sound that cuts through air as “a knife through butter” with a solid and powerful low-end response normally associated with a much larger combo.
In the heart of this amp lies a formidable ultra-high-energy power supply using a Class D power amplifier for high efficiency which equals less heat and less weight, and is coupled with a pure Class-A, ultra-low noise pre amp. This combination completes a power section that achieves a massive dynamic range that allows the player to attain the best tone in any playing situation.
The pre-amp design includes a single channel equipped with a variable gain input section that matches precisely with both active and passive basses. It also features a mute switch and the classic PJB 5-band precision EQ system that achieves the broadest range in tones imaginable with just 5 controls. This allows the player to effortlessly locate their perfect tone within seconds.
The send /return FX patch can be blended to the direct signal allowing even more tonal opportunities. A secondary AUX input allows for practicing along with backing tracks via a 1/8” stereo jack. Back panel features include a Line Output jack that allows the BG-450 to be used in slave mode coupled with one or multiple amps, and a line input that provides the ability for an external pre-amp to be connected if desired.
The DI balanced out can be pre or post EQ and offers a ground lift to avoid problematic hum. Speaker output is via a Speakon NL4 socket perfectly matched to run a C4 or C8 cabinet. The amp can run on any AC voltage from 100 volts to 240 volts.
The Compact Plus puts out a punchy 300 watts into its own speakers and up to 500 watts when connected to an external cabinet. The BG-450 at max power will cover a wide variety of playing situations. For environments that demand much higher volume PJB recommends a BP-800 amp with PJB cabinets, or a BG-800 Roadcase as powerful alternatives.
Läs merpå:
https://pjbworld.com/cms/p-bg-450-suitcase-compact-plus/
PJBass CUB Pro (BG-120)

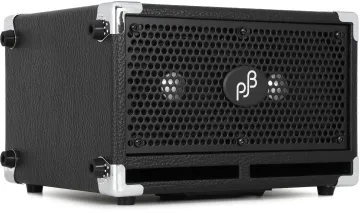

The PJB Bass Cub Pro (Model BG-120) is the ultimate in the evolution of the popular Bass Cubultra-compact bass amplification series from Phil Jones Bass.
The power amplifier section has been completely redesigned and has been fortified to deliver as much as 200 watts RMS of pure tone to go. Together with PJB’s Chrome-Dome speaker technology it provides far greater transient attack from improved loudspeaker cone acceleration, greater dynamic range, and lower harmonic distortion. It will provide increased headroom and speed to capture every nuance of bass playing, from gentle fingerstyle to hardcore slapping.
The speaker design and efficiency is the result of PJB’s commitment to driver research at Phil Jones’s laboratory that features a Klippel laser measurement system and a massive anechoic chamber.
As a stand alone combo the Bass Cub Pro will deliver 120 watts RMS into the internal speakers and will increase to 240 watts RMS with the addition of an extension cabinet. The pre amp is a 5 band eq single channel unit with Low Bass, High Bass, Mid-Range, Low Treble and High Treble controls with +/- 18dB of boost or cut on each control.
The cabinet is constructed of solidly braced Baltic birch plywood and is appointed with luxury “tolex” covering with color options of both Burgundy Red and Black. The input has a switchable gain (for active and passive basses), mute switch, and LED clip indicator which will accurately match all bass instruments. The FX Send/Return sockets feature a blend control to achieve desired balance between FX and dry signals. An auxiliary input has a level control for quick mixing of external devises such as a drum machine or iPod/MP3 player, which are audible through the stereo Headphone Socket or speakers.
Two Speakon sockets on the back are devised for an 8 ohm extension speaker such as a PJB C2 or C4, or C8 cabinet and for the PJB EAR-Box, which is a dedicated personal micro-close field monitor for musicians. A voltage selector switch allows the amp to run on any AC power worldwide. PJB’s exclusive heavy chromed steel armored corners adorn the cabinet with stainless steel hex screws. A plush heavy duty stitched leather handle makes carrying the amp a comfortable task. The cabinet can tilt to increase sound projection when placed on the floor and 8 rubber feet allow the cabinet to be placed vertically or horizontally.
All knobs are PJB precision machined aluminum and all ¼ inch sockets have been upgraded to the finest available.
Läs mer på:
https://philjonesbass.net/cms/p-bg-120-bass-combo-amp-bass-cub-pro/
